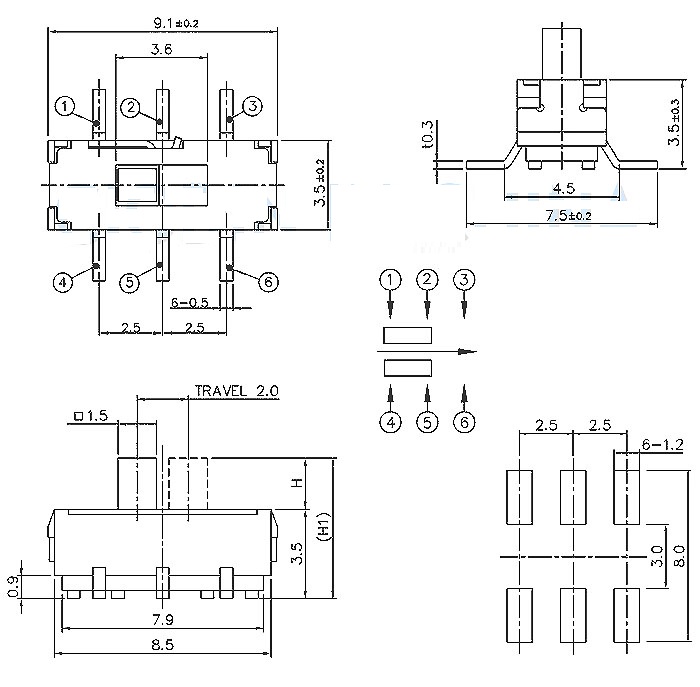

| 外形尺寸：3.5mm*9.0mm*3.5mm |
| 參數(shù)配置 ：2.0mm (SMT) |
Typical Specifications
1.Rating : DC4V 0.3A
2.Circuit : 2C - 3P
3.Timing : NON-SHORTING
4.Travel : 1.5±0.1mm
5.Contact Resistance : 70m?Max.
6.Operating Force :
*a → b, b → a : 200±150gf
*b → c, c → b : 200±150gf
7.Operating Life : 10,000cycles |
|
|
