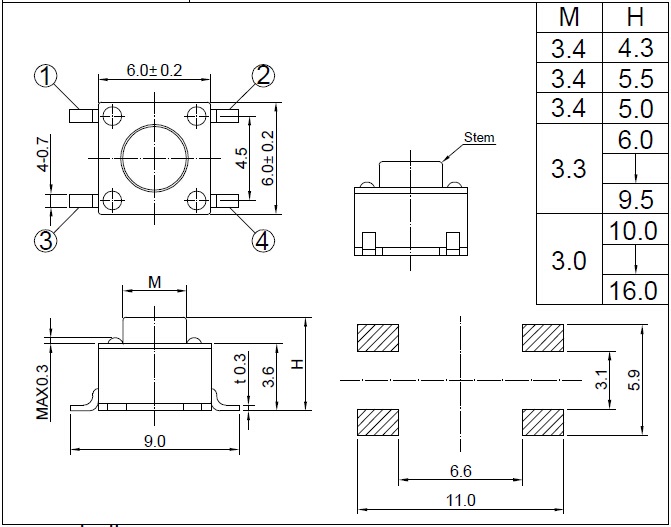

| 外形尺寸：6.0mm*6.0mm*4.3mm |
| 參數(shù)配置 ：撥柄高度4.3-17mm (SMT) |
Typical Specifications
1. Rating : DC12V 50mA
2. Travel : 0.25±0.1mm
3. Contact Resistance : 100m?Max.
4. Bounce : 10m SEC MAX.
5. Operating Force
130±30gf [150,000Cycle]
180±50gf [120,000Cycle]
250±50gf [100,000Cycle] |
|
|
